Single Wire Series
Test
Hybrid Combiner Series
Broadband hybrid combiners offer a means of combining or splitting transmitter powers and providing isolation between the separate signal paths. Typical applications include: Combination of two co-phased transmitters to provide full output power e.g. broadcast systems Combination of unequal frequencies with excellent isolation Power splitting with isolation between outputs.
Single Wire Antenna (SW Series)
The SMC range of single wire antennas consist of a long wire element manufactured from PVC coated braided copper wire with a Kevlar core wound on a single SMC winding spool, terminating to a single M5 terminal. Versions are available without markers to be used as a simple long wire with an ATU or with […]
Tactical Delta Loop Antenna (TDLS)
The TDLS is a transportable tactical delta loop antenna system designed for flexible, multi-mode HF communications in demanding field environments. The system combines two tactical dipole antennas, covering 2-12 and 12-30MHz, the elements of these can be arranged as a directional wide band delta loop, giving up to 7bBi forward gain. Designed for rapid deployment, […]
FM Lighting Mast Series
The FM Lighting Mast Series of the pneumatic telescopic Hilomast range is designed for floodlight use. One of the main problems with floodlighting masts is the electric cable having to safely travel the full length of the extended mast and be conveniently stored when retracted. The FM Mast Series solves both these problems in a […]
STORM Winch Operated Mast Series
Designed to meet stringent MIL-810G standards, the masts are made of composite material – lightweight yet tough – and are capable of supporting a wide range of headloads including antennas, cameras, lights, and much more. Our telescopic masts are renowned worldwide for superb performance in even the most hostile conditions. The range includes models with […]
RL100-5 50 Ohm 10kW Resistive Load
The RL100-5 is a 50 Ohm unbalanced resistive load designed specifically for the HF frequency range 1.5 – 32MHz. The load is convection cooled, requires no AC power and is suitable for outdoor unprotected operation. Typical applications include use as a transmitter load, hybrid balancing load and antenna common mode load.
MF ‘T’ Antenna
The MF “T” Antenna is your ultimate solution for omnidirectional communication in the medium frequency (MF) bands. Designed to excel in this frequency range, the MF “T” antenna offers reliable and efficient performance. The MF “T” antenna is a development of the inverted “L” design, where the upper element is bent over. This design allows […]

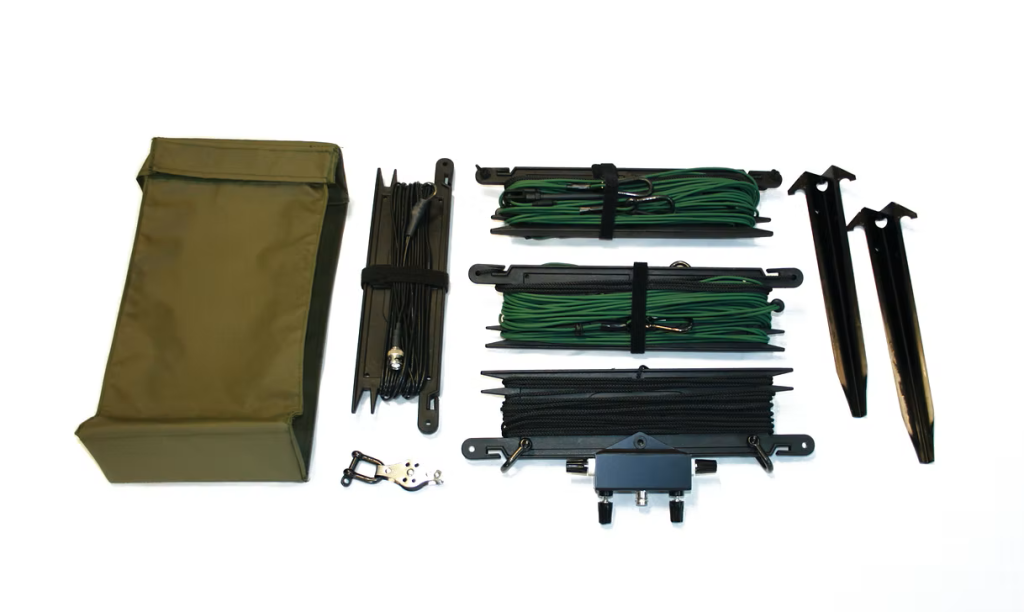

Wolf Tactical NVIS Broadband Antenna Series
The folded dipole design is engineered to maximise electrical efficiency while keeping overall size and weight to a minimum. Constructed using the same wire as the “Whiskey” antenna, the Wolf tactical antenna system is compact and lightweight, weighing approximately 5 lb including the carry bag. The wire has no memory, simplifying handling and repacking in […]
Radial Earth Systems
SMC manufacture a wide range of radial earth systems, suitable for use with a wide range of verticle antennas, and ground dependent wire antennas. The standard range normally have 36 soft stranded copper radials, fitted to a 30cm quare copper plate. Lengths may be varied to suit site requirements.
