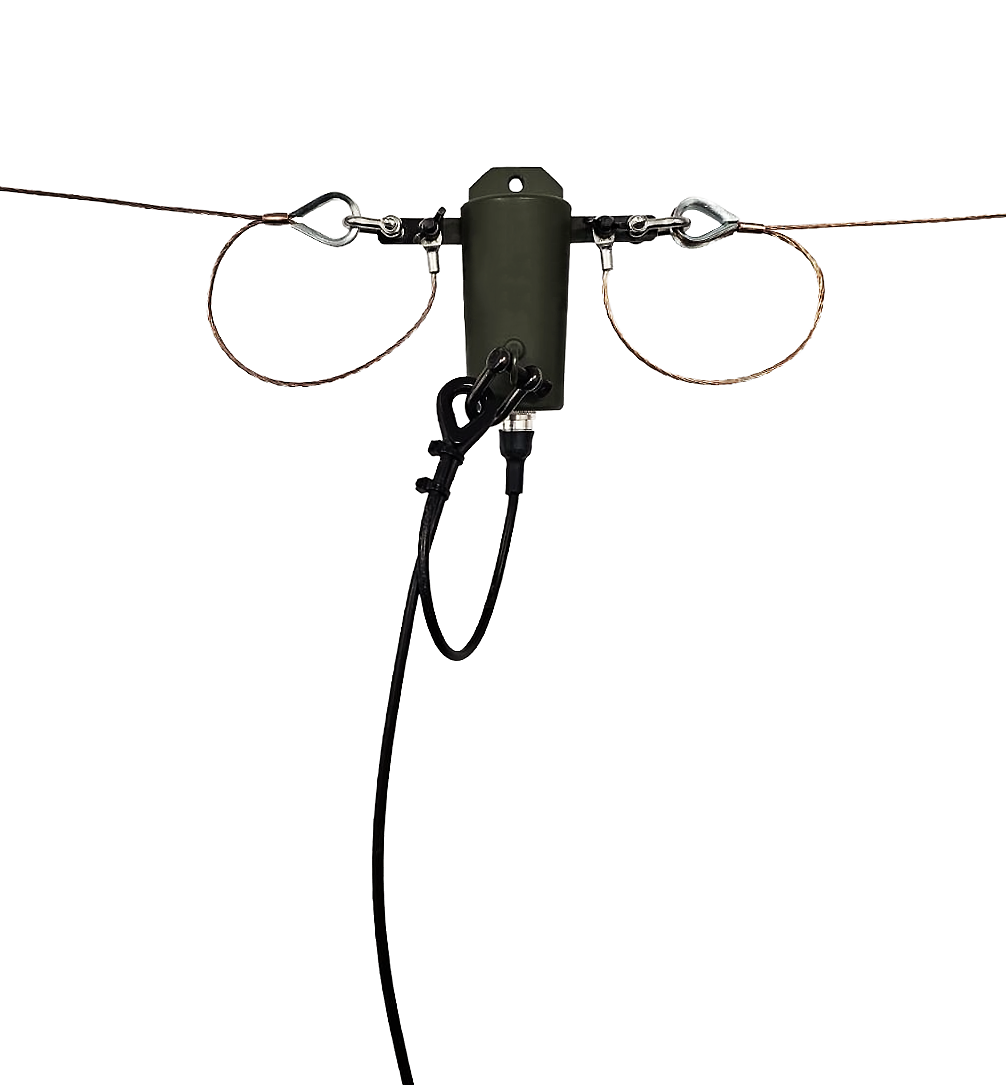

Experience top-tier performance and seamless communication with our Centre Fed Dipole Antenna. Whether you require specific frequencies or prefer customisation, we offer two options: ready-made antennas or the flexibility to cut them to your desired length. With line taps and frequency charts included, you can make on-site adjustments.
Crafted from high-quality purpose-designed components, our antennas are engineered to thrive in the most extreme environments, ensuring reliable performance when you need it most. Ideal for short to medium-range communication, these antennas deliver exceptional results.
At a quarter wavelength above ground level, our Centre Fed Dipole Antennas predominantly radiate upwards, offering partial omnidirectional coverage through NVIS (near vertical incidence skywave). Increase the height to half wavelength, and the radiation pattern transforms into a figure of eight, catering to different coverage requirements.
Technical Specifications:
- Antenna Elements: Hard drawn copper stranded wire
- Insulators: Polypropylene
Key Performance Details:
- Bandwidth: +/- 2% of the centre frequency, ensuring precise communication.
- VSWR (Voltage Standing Wave Ratio): Better than 1.5:1, minimising signal loss.
- Power Handling: Supports power up to 1kW, providing ample capacity for your needs.
- Impedance: 50 Ohms
- Polarization: Horizontal, ensuring efficient horizontal signal propagation.
