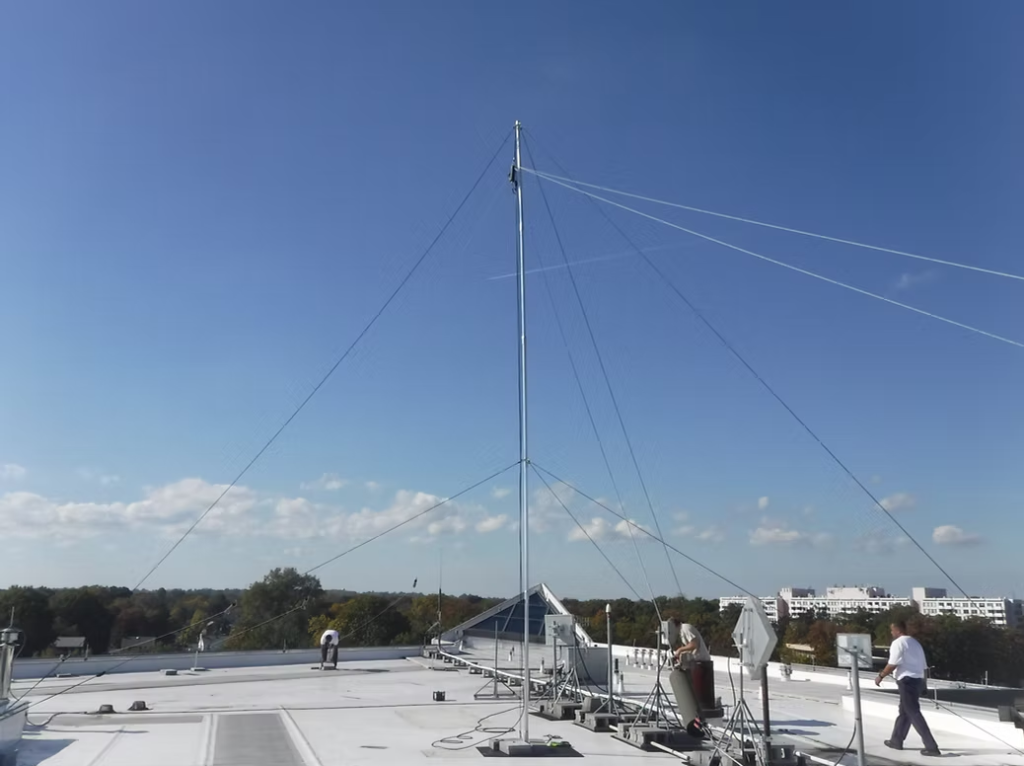

The WHISKEY-1K-ANT/EXT/A broadband HF antenna provides 2–30 MHz coverage with 1 kW power handling. Featuring stainless steel elements in an inverted V configuration, it uses a single 9.1 m mast and has an 8.5 m × 36 m footprint for tactical and permanent HF communications
| Frequency Range | 2 to 30 MHz |
|---|---|
| Bandwidth | Broadband |
| Power Rating | 1kW |
| SWR | Better than 1.8:1 |
| Impedance | 50 Ohm |
| Polarisation | Horizontal |
| Antenna Elements | Stainless steel |
| Antenna Configuration | Inverted V |
| Footprint | 8.5m x 36m |
| Mast Requirements | Single 9.1m |
| Input Connector | N Type |
| Packed Dimensions | 1020mm x 300mm x 230mm |
| Cable | URM67 20m |
