VDC 50/600 ohm Low Power Wide Band Measuring

The Minns Baluns VDC Series are designed for precision measurement purposes where 50/600 Ohm transformation is required with low VSWR and high balance ratio. All the measuring transformers are fully encapsulated within a cast aluminium case to provide a high stability product capable of withstanding the most severe environment.
Add to Quote
JOSCAR Registered
Cyber Essentials Certified
1006 ISO SGS
UKAS Management Systems
ANAB

Quick Information

RF Communications
Balance Impedance
Balance Ratio
Balanced Connection
Balanced Impedance
Frequency Range
Insertion Loss
Power Rating
Temperature Range
Unbalanced Connection
Unbalanced Impedance
VSWR

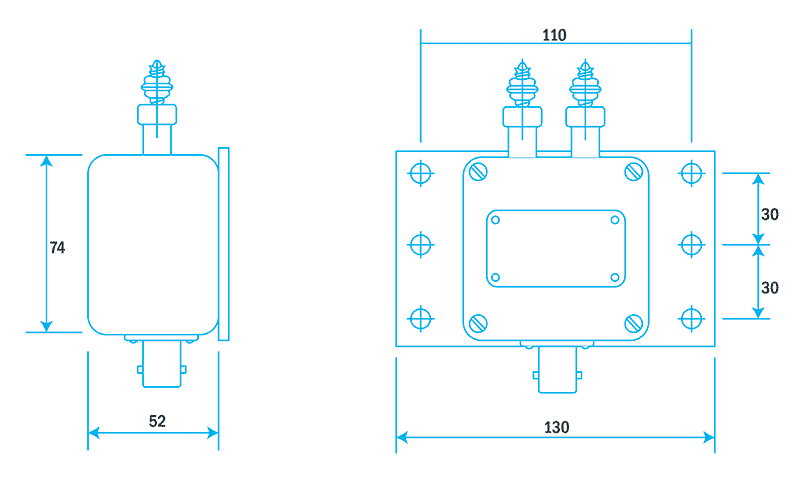

VDC 50/600 ohm Low Power Wide Band Measuring
Balance Impedance: 300 ohm to 600 ohm
Balance Ratio: See table below
Balanced Connection: M6 Insulators
Balanced Impedance: 600 ohm
Frequency Range: See table below
Insertion Loss: <0.2 dB
Power Rating: +10dBm
Temperature Range: -20°C to +55°C
Unbalanced Connection: See table below
Unbalanced Impedance: 50 ohm
VSWR: See table below
Standard Frequency Ranges Balanced Terminals Balance Ratio VSWR BNC N UHF
20Hz – 20kHz Ceramic M6 >12dB 1.1 : 1 VDC08A VDC08B VDC08C
100Hz – 200kHz Ceramic M6 >50dB 1.1 : 1 VDC05A VDC05F VDC05G
50kHz – 10MHz Ceramic M6 >40dB 1.1 : 1 VDC06A VDC06F VDC06G
1.5MHz – 32MHz Ceramic M6 >26dB 1.1 : 1 VDC02B VDC02A VDC02C
