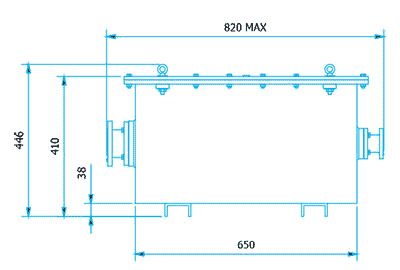

SMC-Antennas-and-Mast-Specialists-Products-Multicouplers-HFM2-10KW_Multicoupler-Hero

12 10 15 - RDA 1095 - HFM2-5A-10 - better for 2x10kW Multicoupler

Products

Multicouplers RF Communications

HFM2-10 – 2 x 10kW HF Transmitter Multicoupler

HFM2-10 – 2 x 10kW HF Transmitter Multicoupler

Take your broadcasting capabilities to new heights with our HFM2-10 Series Transmitter Multicoupler. Designed for exceptional performance, this series enables seamless combination of two co-phased 10 kW transmitters, resulting in a powerful single 20 kW output.

Ideal for low power HF broadcast systems, these units ensure uninterrupted service even if one transmitter experiences a failure. Trust in the reliability of our technology to keep your broadcasting operations running smoothly.

Thanks to the HFH2-10’s excellent isolation characteristic, you have the flexibility to combine two unequal frequencies for common antenna working. Enjoy the benefits of a versatile setup without compromising on performance, even with a 3 dB power loss.

Discover the power of the HFM2-10 Series Transmitter Multicoupler and elevate your broadcasting capabilities like never before. Experience seamless integration and enhanced performance for your HF transmitters.

Quick Information

RF Communications

Connectors

Cross Cover Frequency

Environment

Frequency

Impedance

Insertion Loss

Isolation

Load VSWR

Notch Width

Power

VSWR

Weight (kg)

HFM2-10 - 2 x 10 kW HF Transmitter Multicouplers

Connectors: 1 5/8", 3 1/8" EIA

Cross Cover Frequency: Notch centre to be specified between 3-18MHz (lower notch centres available)

Environment: Outdoor unprotected -40°C to +55°C. Silicone oil cooled natural convection

Frequency: 0.1 - 32MHz

Impedance: 50 ohm

Insertion Loss: <0.3 dB (matched load)

Isolation: >30 dB (matched load)

Load VSWR: 3 : 1 max

Notch Width: 15%, 20%, 40% of cross over frequency

Power: 2 input channels each 20kW average (40kW peak), 1 output channel 40kW average (80kW peak)

VSWR: <1.2 : 1 (matched loads)

Personalised solutions

Whether you need a single antenna or a complete RF system, get the right products for your project. Request your quote now.

Choose a Product

HFM2-10 – 2 x 10 kW HF Transmitter Multicouplers

Connectors: 1 5/8″, 3 1/8″ EIA

Cross Cover Frequency: Notch centre to be specified between 3-18MHz (lower notch centres available)

Environment: Outdoor unprotected -40°C to +55°C. Silicone oil cooled natural convection

Frequency: 0.1 – 32MHz

Impedance: 50 ohm

Insertion Loss: <0.3 dB (matched load)

Isolation: >30 dB (matched load)

Load VSWR: 3 : 1 max

Notch Width: 15%, 20%, 40% of cross over frequency

Power: 2 input channels each 20kW average (40kW peak), 1 output channel 40kW average (80kW peak)

VSWR: <1.2 : 1 (matched loads)

Weight: 250kg
