Products

Antennas

TA3/16/16/SS

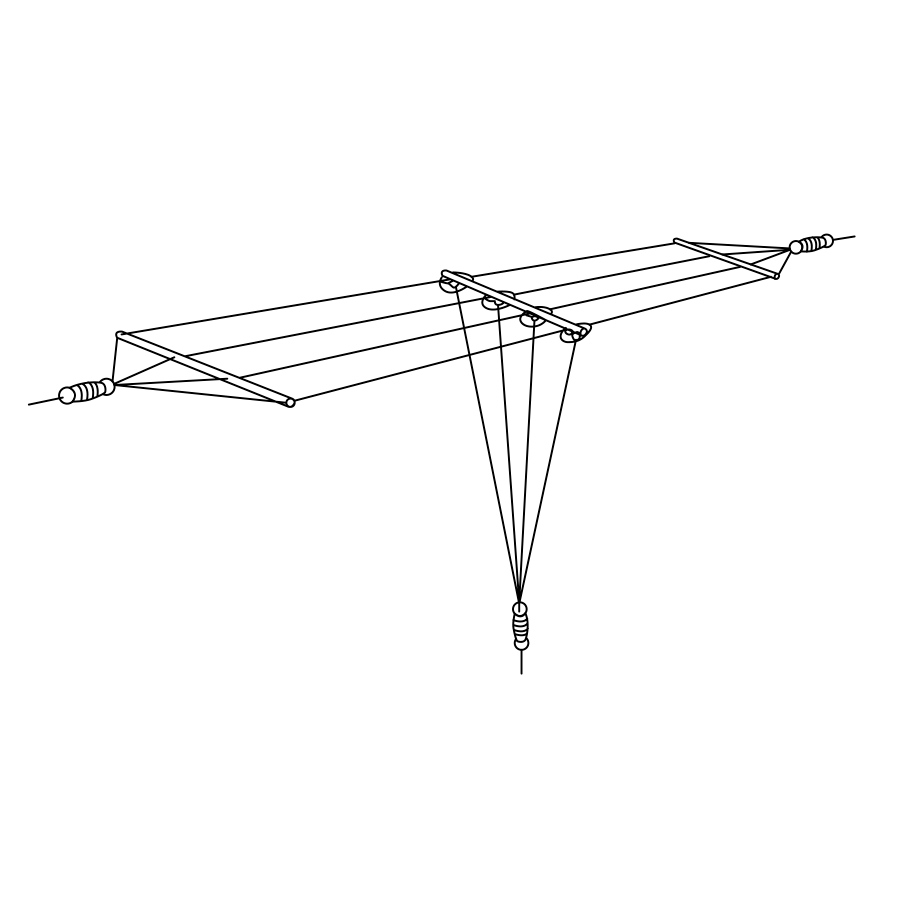

Frequency range: 150 to 550KHz Power rating: 10kW SWR: ATU required Polarisation: Vertical Antenna elements: Three stainless steel Antenna configuration: Tee Footprint: 16m x 2m Mast requirements: Two, 16m + height of the down link Input connector: Wire

Quick Information

Antennas

Antenna Materials

Connector

Design Length

Frequency Range

Mast

Polarisation

Power Rating

Antenna Elements: Three stainless steel

Connector: Wire

Design Length: 16m x 2m

Frequency Range: 150 - 550KHz

Mast: Two required: 1x 16m + 1x height of the down link

Packed Weight: -

Polarisation: Vertical

Power Rating: 10kW

VSWR: ATU required

Connector: Wire

Design Length: 22m x 2m

Frequency Range: 150 - 550KHz

Mast: Two required: 1x 16m + 1x height of the down link

Polarisation: Vertical

Power Rating: 10kW

Antenna Elements: Three stainless steel

Connector: Wire

Design Length: 30m x 2m

Frequency Range: 150 - 550KHz

Mast: Two required: 1x 15m + 1x height of the down link

Polarisation: Vertical

Power Rating: 10kW

Antenna Elements: Three stainless steel

Connector: Wire

Design Length: 70m x 2m

Frequency Range: 150 - 550KHz

Mast: Two required: 1x 53m + 1x height of the down link

Polarisation: Vertical

Power Rating: 10kW

Personalised solutions

Whether you need a single antenna or a complete RF system, get the right products for your project. Request your quote now.
