HFH6-50/B – Broad Band VHF Hybrid Combiner

Quick Information

RF Communications

Configuration

Connectors

Frequency

Impedance

Input Power

Insertion Loss

Isolation

Load Ports

Load VSWR

Output Power

VSWR

Weight (kg)

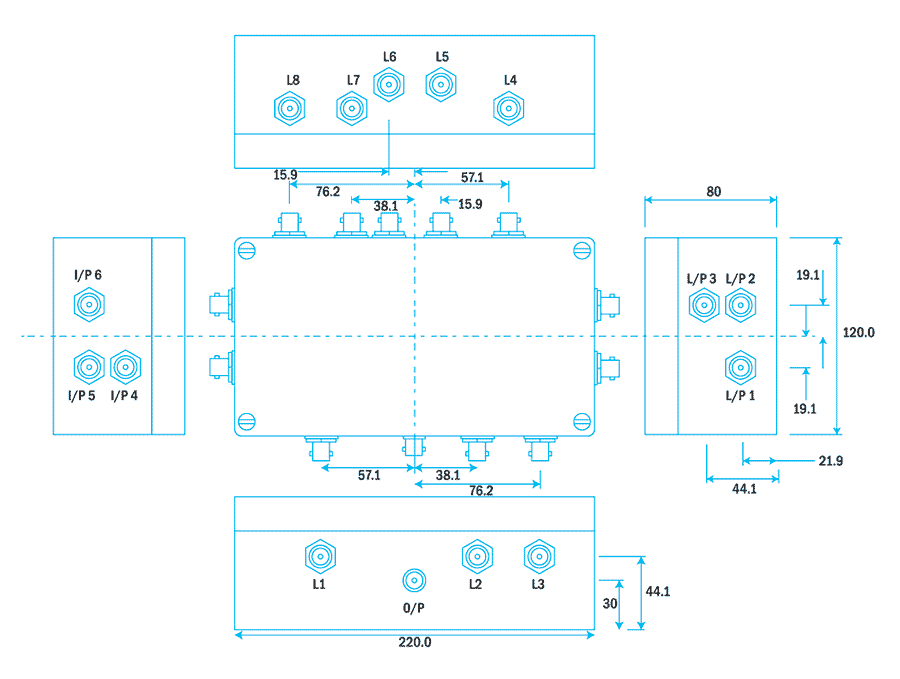

HFH6-50/B - Broad Band VHF Hybrid Combiner

Configuration: Cast aluminium case, solid encapsulation, epoxy paint finish

Connectors: BNC

Frequency: 20 - 90MHz

Impedance: 50 ohm

Input Power: 6 x 50 Watt

Insertion Loss: <0.75 dB + 7.8 dB splitting loss

Isolation: >40 dB (matched loads)

Load Ports: 8 x 50 ohm (32 Watt each)

Load VSWR: 2.5 : 1 max

Output Power: 50 Watt

VSWR: Less than 1.2 : 1 (matched loads)

Weight: 1kg (exclusive of mounting plate and loads)
