HF50 Transformer Series 5 kW Ave power

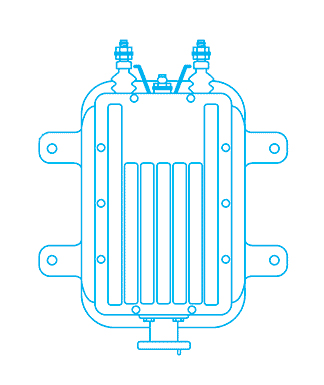

HF50 Series – 5 kW HF Wide Band Antenna Matching

Quick Information

Matching Transformers

Balance Ratio

Balance Terminals

Coaxial Connectors

Configuration

Frequency

High Voltage Protection

Impedance

Insertion Loss

Load VSWR

Power

Shipping Dimensions

Temperature Range

VSWR

Weight (kg)

HF50 Series - 5 kW HF Wide Band Antenna Matching

Balance Ratio: > 26 dB

Balance Terminals: P.T.F.E. M10 thread

Coaxial Connectors: 7/8" EIA (others on request)

Configuration: Cast aluminium case (LM25). Hermetically sealed. Epoxy paint finish.

Frequency: 1.5 - 32MHz

High Voltage Protection: Arcing horns and internal static drain

Impedance: See table below

Insertion Loss: <0.3 dB

Load VSWR: 2.5 : 1 max

Power: 5kW average, 20kW peak

Shipping Dimensions: 0.49m x 0.41m x 0.39m

Temperature Range: -40°C to +55°C

VSWR: <1.2 : 1 (2 - 30MHz), <1.3 : 1 (1.5 - 32MHz)

	Balanced Impedance (ohm)
Unbalanced Impedance (ohm)	50	75	100	200	300	450	600
50	HF50-55	HF50-57	HF50-510	HF50-520	HF50-530	HF50-545	HF50-560
75	HF50-75	HF50-77	HF50-710	HF50-720	HF50-730	HF50-745	HF50-760
